Mechanical Design & Multiphysics Analysis of Speaker Stand

In this project, my friend and I take a Proline SPS502 Speaker Stand and reverse-engineer it into a fully parametric SolidWorks assembly with manufacturing drawings, GD&T, and ASME 14.5Y-compliant documentation. After, we rigorously tested it via FEA & CFD simulation.

Project Three — cover

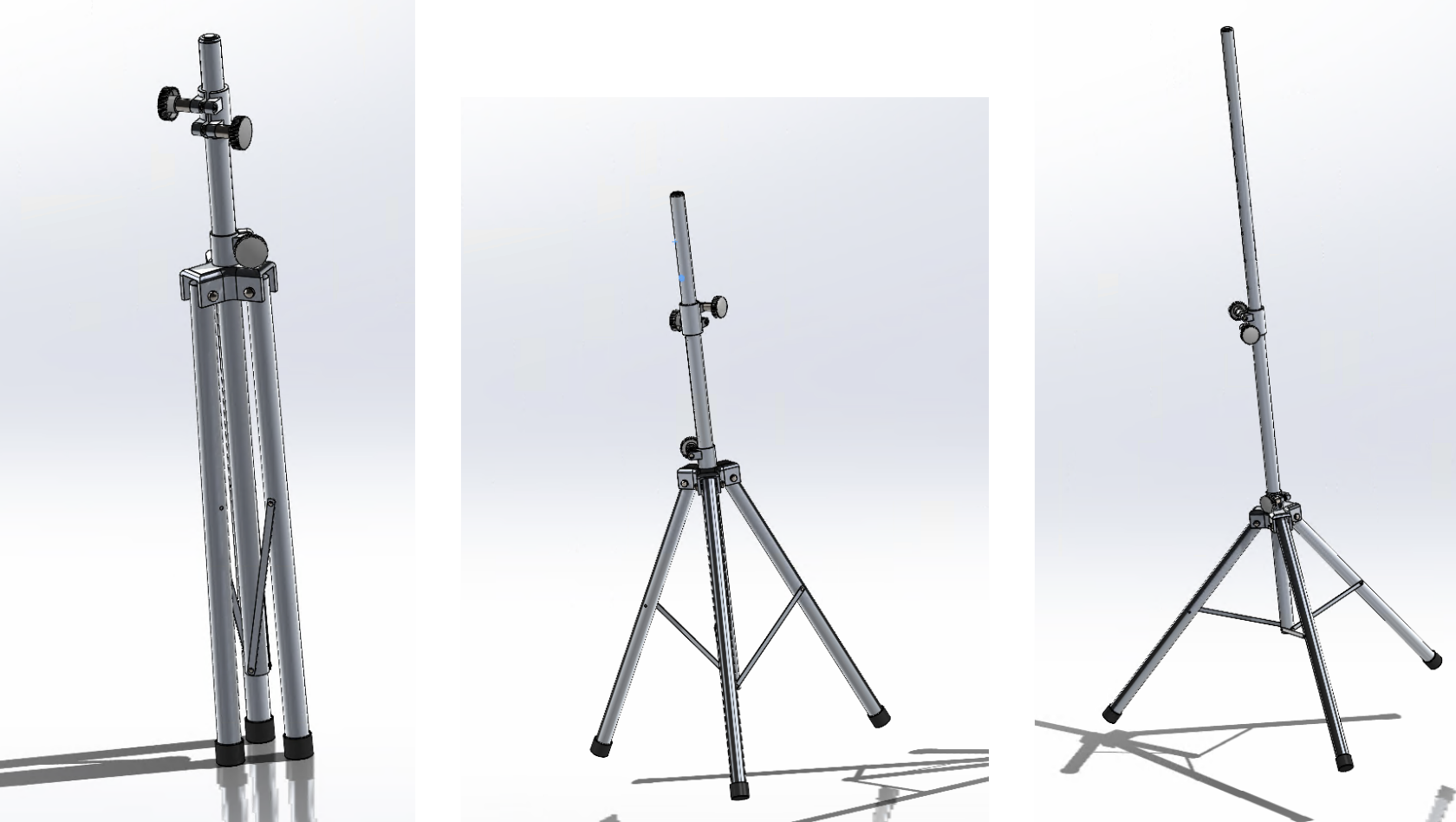

Various views of the stand.
Project Three image 2

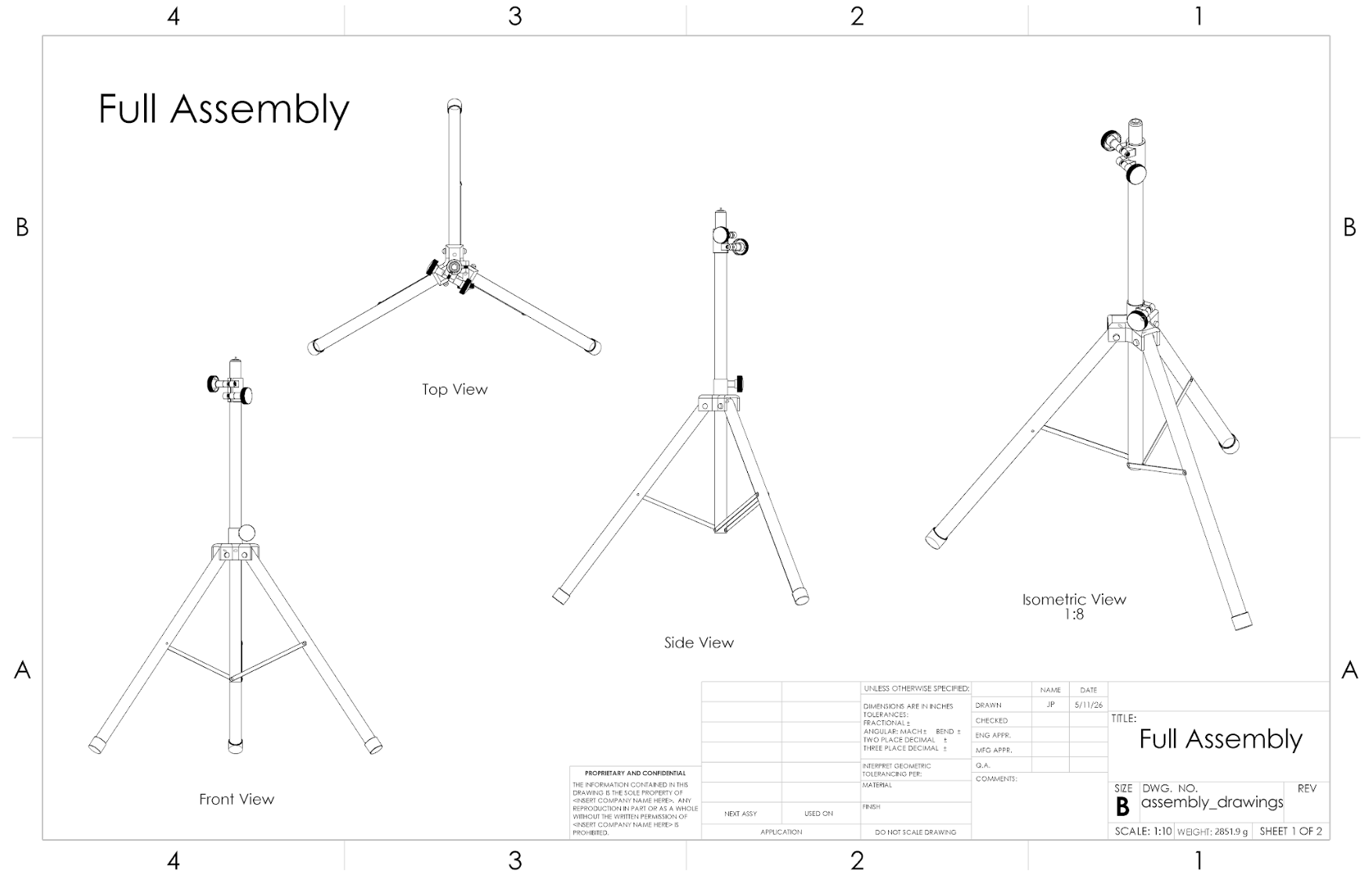

Drawing of the full assembly.
Project Three image 3

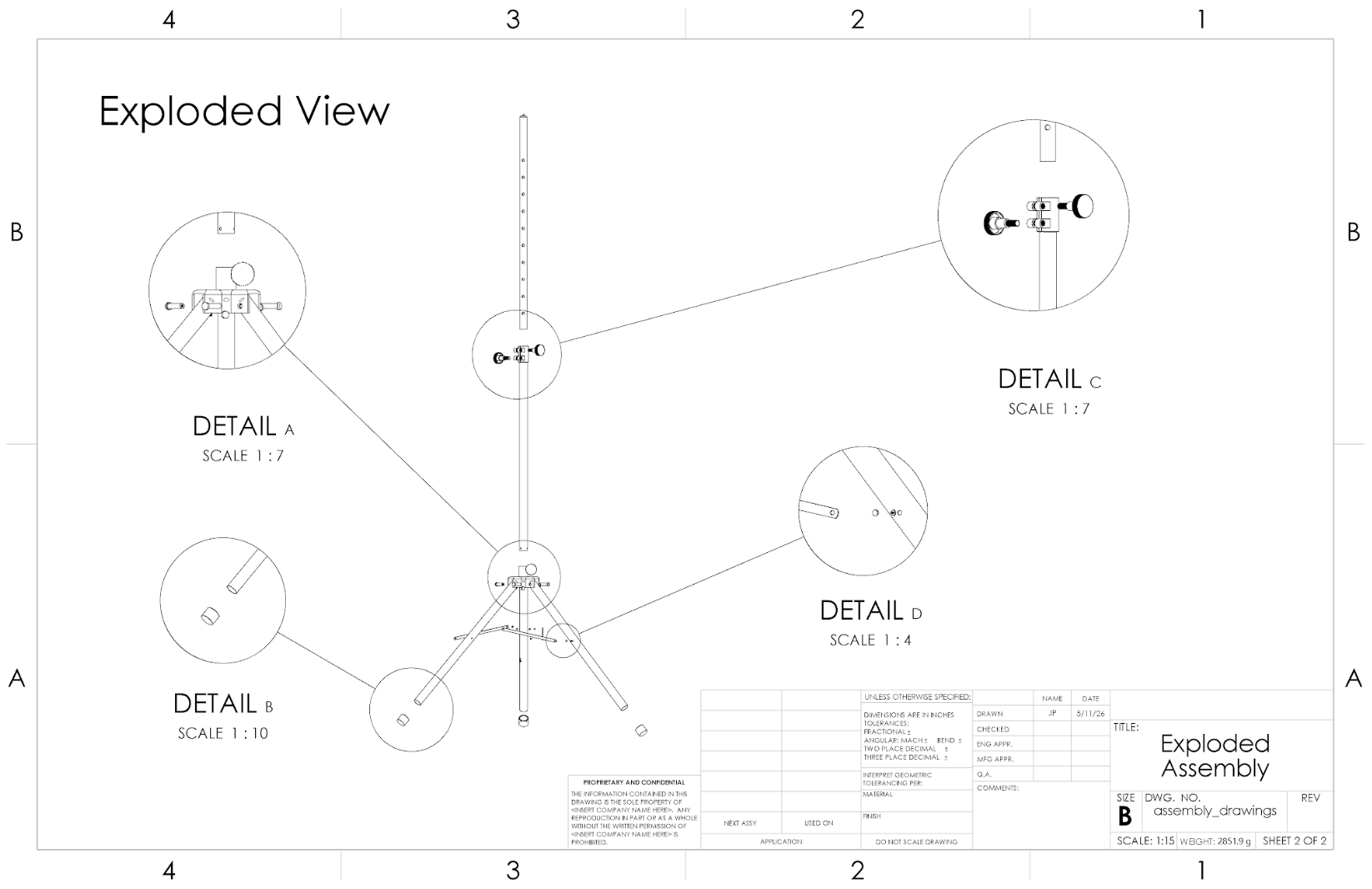

Exploded view of the full assembly with detail views of key parts of the stand.
Project Three image 4

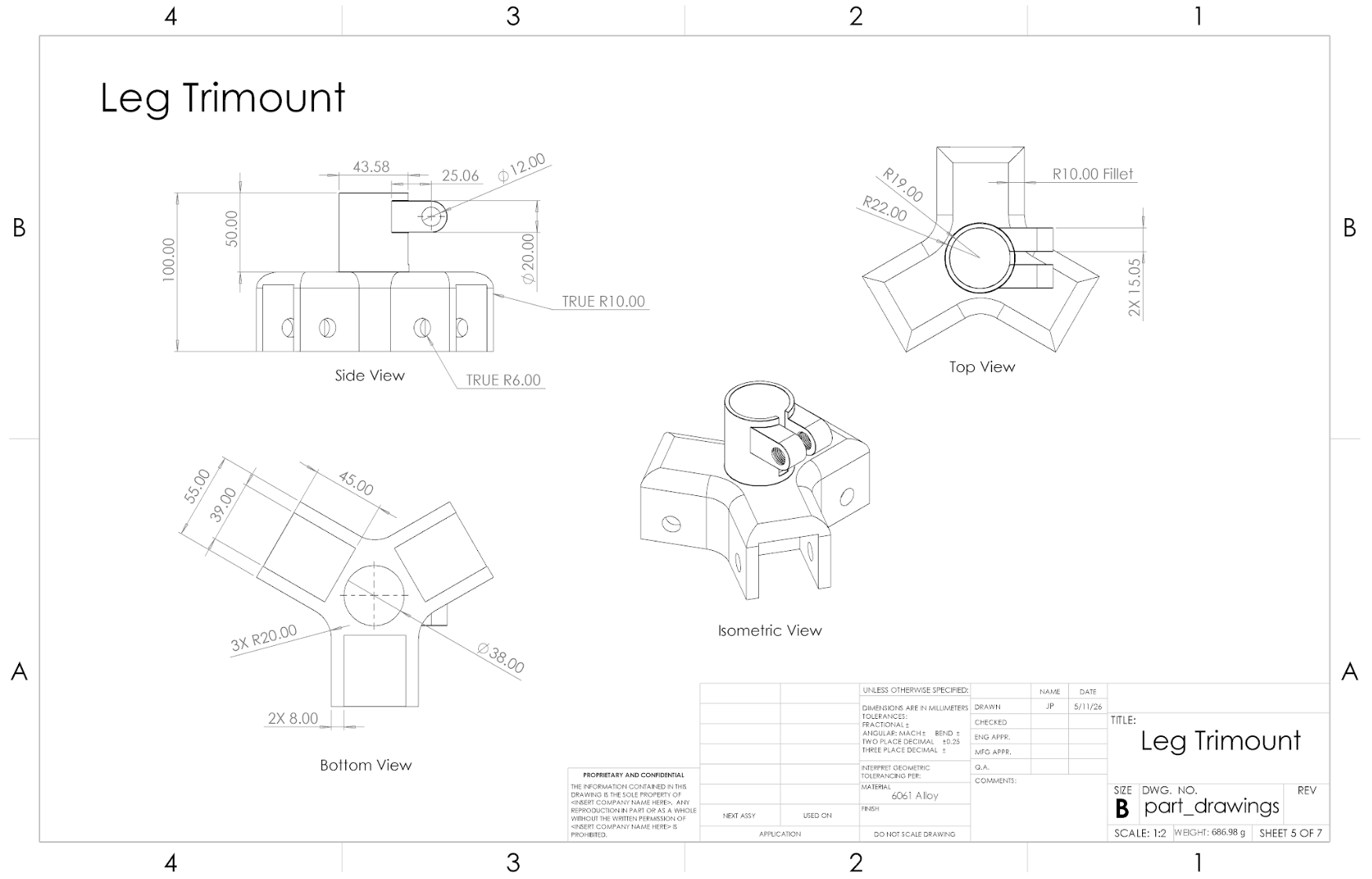

Example 1, drawing of a component.
Project Three image 5

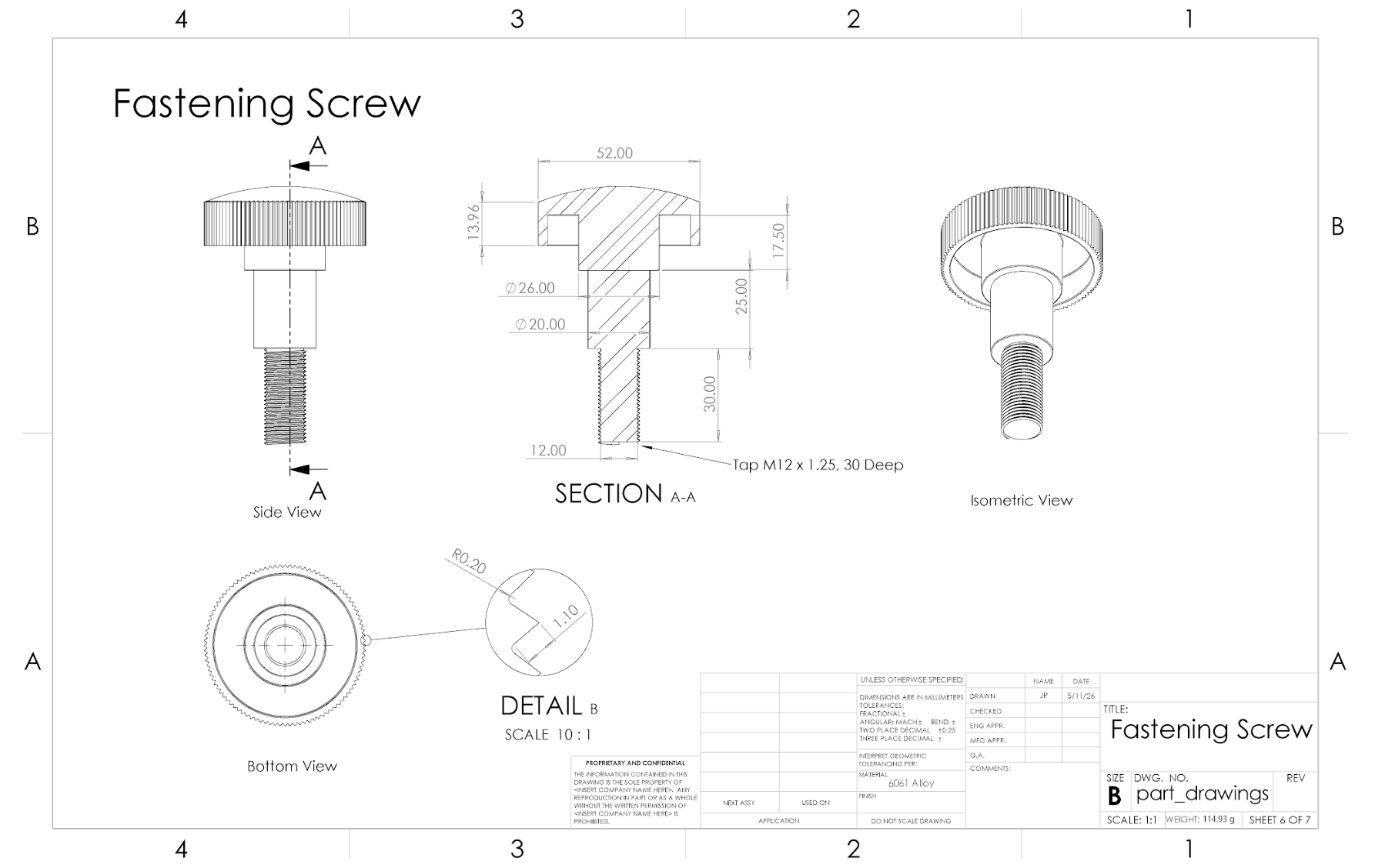

Example 2, drawing of a component.
Project Three image 6

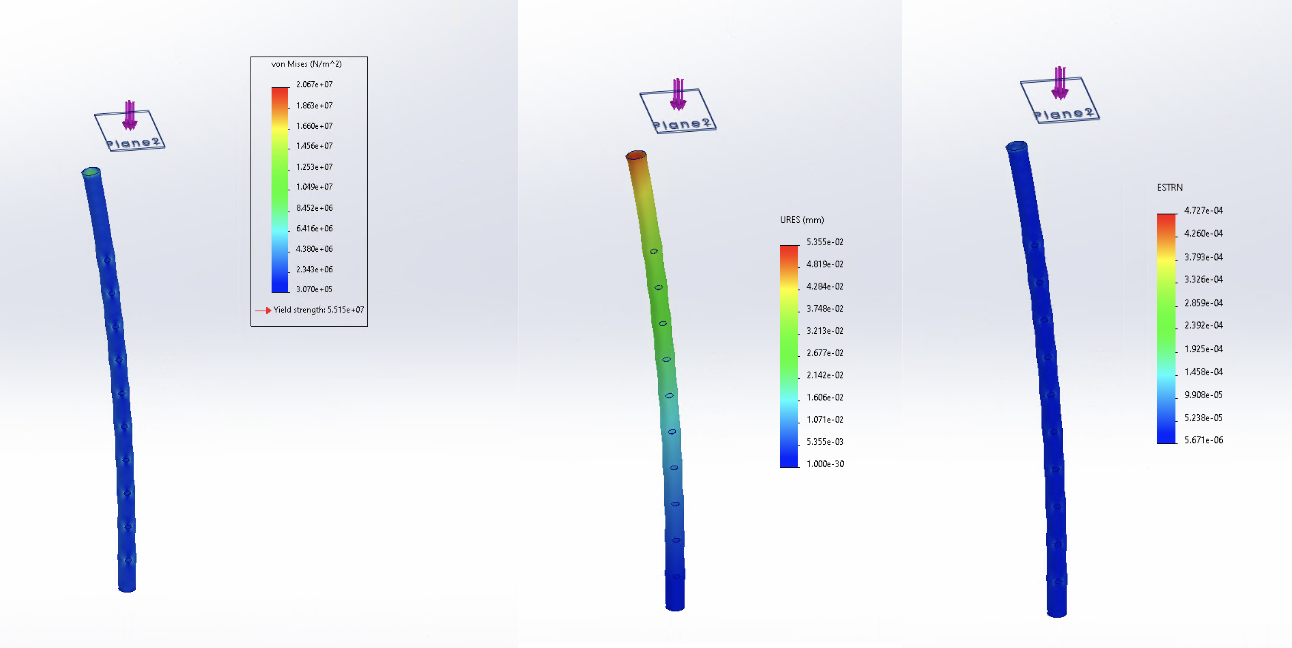

Example 3, stress simulations of center shaft.
